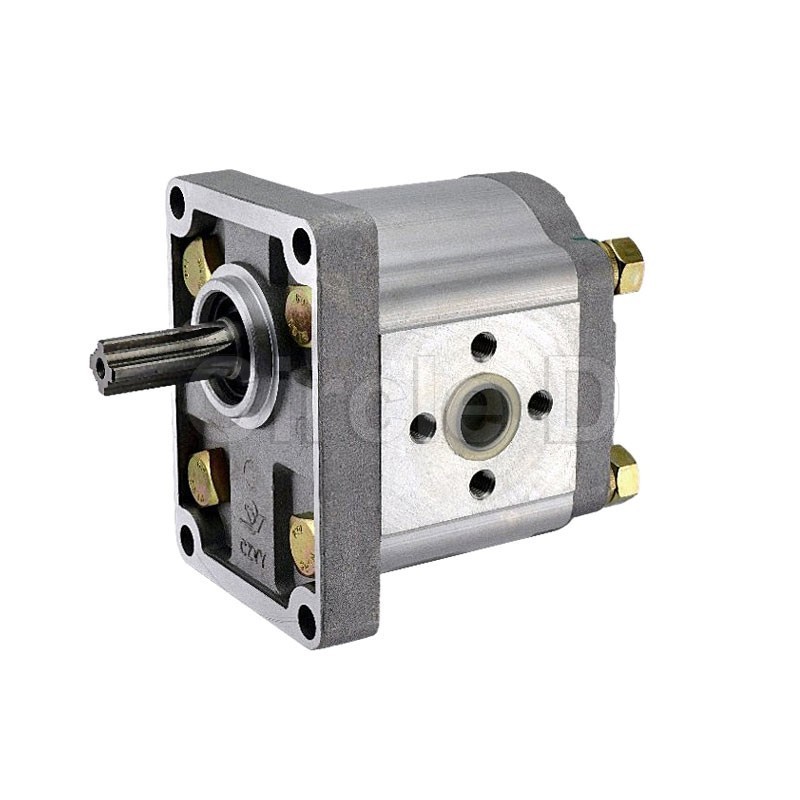

Right rotation. 12ml per revolution. 15mm OD input shaft with 4 splines. Side inlet and outlet. Both inlet and outlet have M8 threads at 38mm centres. 100mm x 70mm mounting bolt centres. CBJ30-F12HY, CBN-E312, CBN-F312.
There are possible variants of all parts.
Always compare the dimensions we provide.
Right rotation. 12ml per revolution. 15mm OD input shaft with 4 splines. Side inlet and outlet. Both inlet and outlet have M8 threads at 38mm centres. 100mm x 70mm mounting bolt centres. CBJ30-F12HY, CBN-E312, CBN-F312.
