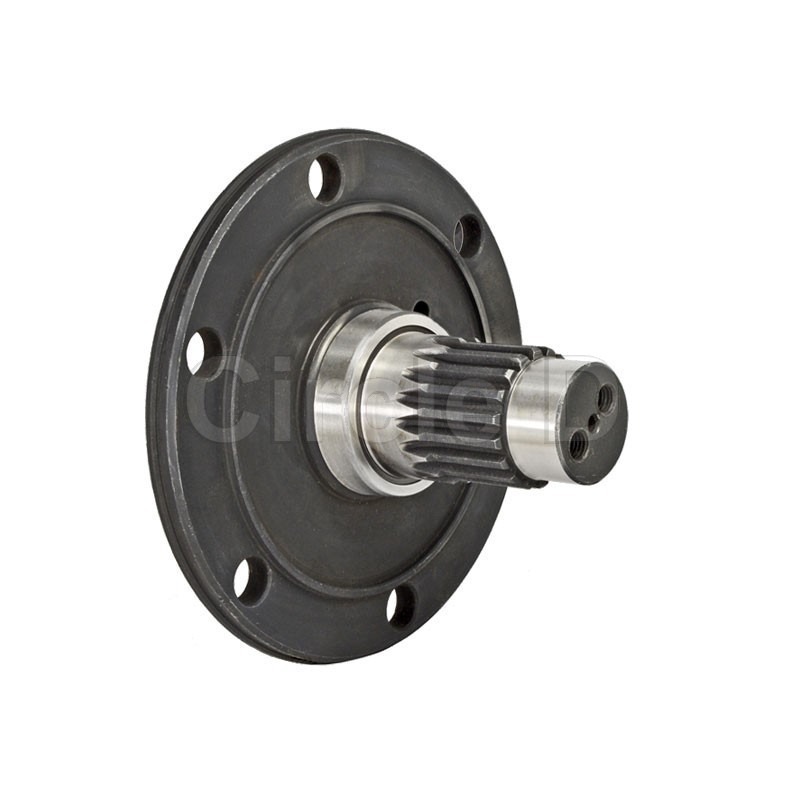

JM304-654 Front Driving Axle Type B
A$326.82
Tax included
47.3mm OD, 18 spline. 40mm OD x 21.3mm height inner bearing seat. 50mm OD outer bearing seat. 65mm diameter x 16.3mm height seal face. 2 x M10x1.5 retainer bolt threads at 20mm centres. 6 x 16mm ID wheel stud holes 160mm centres diagonally. 132mm ID end face oil seal seat. M10 grease nipple thread.
There are possible variants of all parts.
Always compare the dimensions we provide.
