LZ254 Type B Front Driving Axle Kit

A$615.95
Tax included

LZ254, LZ304 and all other Luzhong Tractors built on the 280 series chassis.
All the necessary components required to replace the obsolete 254.31F.111 Type A front axle.

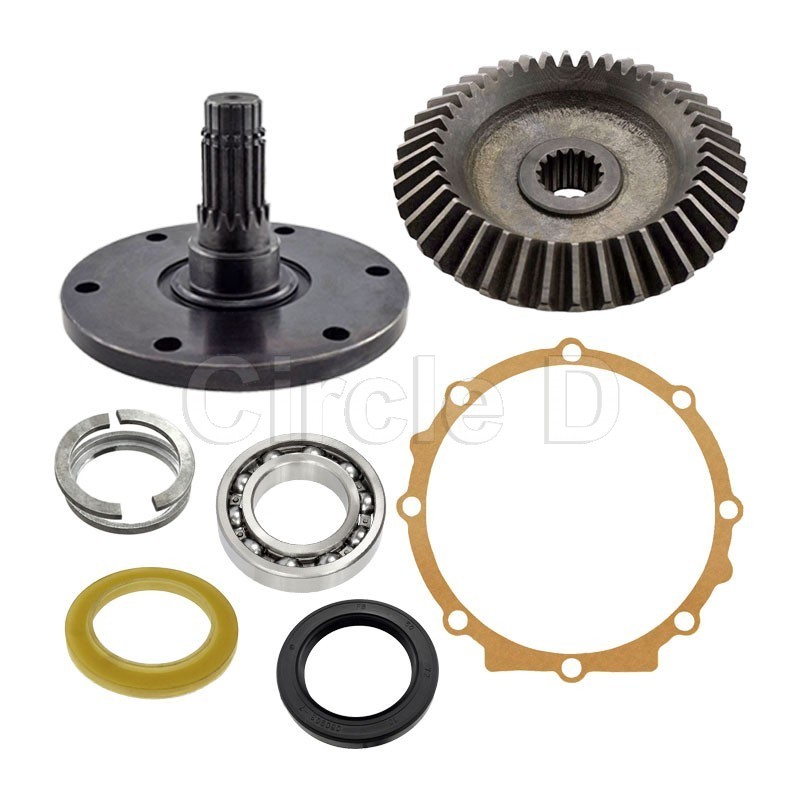

Kit includes:
1 x Type B axle 31F.111
1 x Type B big gear 31F.110
1 x Type B snap ring set
1 x Bearing 6206
1 x Bearing 6307
1 x Oil seal
1 x Dust seal
1 x Gasket 31F.114

Quantity
Currently out of stock

  There are possible variants of all parts.

Always compare the dimensions we provide.

This axle has replaced the obsolete Type A axle. This axle will not directly interchange with Type A. The difference is the location of the snap rings that retain the large gear wheel. Type A snap rings are located on the wheel side of the large gear, Type B (this axle) snap rings are located on the engine side of the large gear. If you have a type A axle you will also require the Type B large gear and snap rings to match this axle. Bearings to suit this axle are 6206 (inner) and 6307 (outer) with oil seal 50x72x10. (outer) with oil seal 50x72x10.
